Which machine takes double-deck coaches?

SUNRISE W4700. It washes to 470 cm high and 285 cm wide and is the taller of the two published SUNRISE models, built for double-deck coaches and high-cube trailers.

Can a car tunnel wash vans?

The conveyor tunnel washes vehicles up to 220 cm wide and 250 cm high. Anything larger goes to EPHESUS, which takes vans and minibuses up to 3.00 m high, or to SUNRISE.

Does Europe Makine build for mixed fleets?

Yes. One supplier covers cars, light commercials, buses, trucks and rail, so a site washing several classes can source every machine from the same builder.

What does a five-brush machine add over three brushes?

Four independently moving upright brushes and one horizontal brush do the work on CIRRUS 5N. It adds high-pressure rotary nozzles for the sides and wheels, and a chassis wash with nozzles that move left and right.

Match the machine to the vehicles you wash

The washing envelope decides which machine can take your vehicles. Start from the tallest and widest vehicle on your list, then check it against the published figures.

Talk to Europe Makine

Sheet: 02 / 04
Subject: By vehicle type
Supplier: europemakine.com

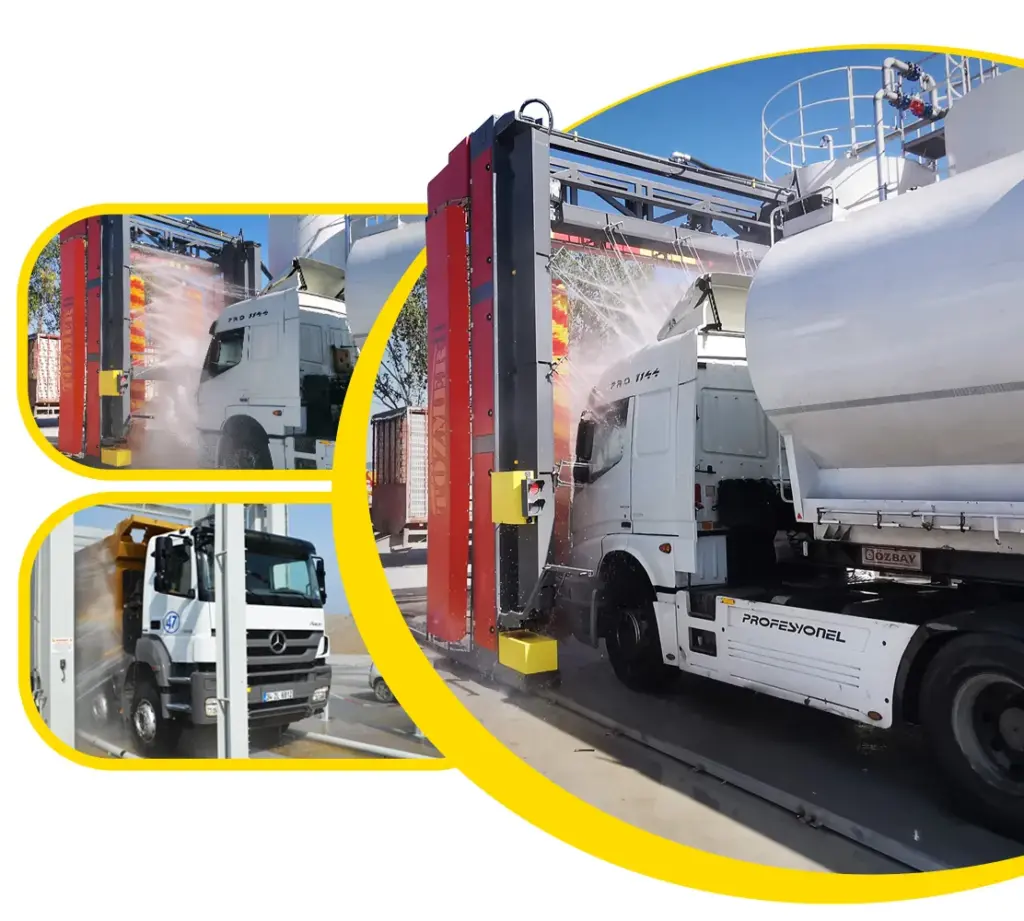

Collage of a red wash gantry spraying a tanker truck, with two smaller views of trucks in wash bays

Size the machine to your largest vehicle

Every rollover and tunnel has a maximum washing height and width. A vehicle outside that envelope cannot be washed, however good the machine. List the vehicles you expect, mark the tallest and the widest, and compare those two numbers first.

Passenger cars are the core of all four car systems. Vans, jeeps and minibuses up to 3.00 m high and 2.20 m wide fit EPHESUS. Buses, coaches, rigid trucks and trailers need the SUNRISE gantry.

SUNRISE truck and bus gantry

Vehicles	Buses and coaches, rigid trucks, vans, trailers
Max washing height, W4000	420 cm
Max washing height, W4700	470 cm
Max washing width, both models	285 cm
Machine height, W4000 / W4700	510 cm / 560 cm
Brush units, vertical / horizontal	2 + 1
Washing time, W4000	5 to 6 minutes per vehicle
Hydrowash option	20 and 30 bar

Source: europemakine.com/systems/truck-bus-wash-sunrise/

Cars, SUVs and light commercials

The conveyor tunnel takes cars up to 220 cm wide and 250 cm high. It is built for cars on high-traffic sites. For buses, coaches and trucks Europe Makine points buyers to SUNRISE.

EPHESUS takes passenger cars, vans, jeeps and minibuses up to 300 cm high and 220 cm wide, with two vertical brushes for the sides and one horizontal brush for the front, roof and back.

Its brush set is four upright brushes, each moving on its own, and a single horizontal brush. Its Brush Swing system adapts to a wide range of vehicles, and the 250 and 300 versions differ in washing height. The car systems page lists it at 24 to 32 vehicles an hour washing only, and about 14 an hour with drying.

ACROBAT 2X touchless rollover

Max washing height	2.20 m
Max washing width	2.20 m
Max machine width	4.20 m
Max machine height	3.20 m
Brushes	None
Arm movement	6 axes
Water pump pressure	100 / 200 bar

Source: europemakine.com/systems/acrobat-2x/

Fig. 1 Rollover bay layout. The vehicle stands still and the machine travels over it on floor rails.

Wrapped, matte and liveried vehicles

Some finishes should not meet a brush. ACROBAT 2X is the machine for wraps, matte paint, fresh finishes and liveries that must not be touched. Its two arms read the vehicle profile and clean front, back, sides and top.

For liveried buses and trucks, SUNRISE takes an optional brushless Hydrowash. Its high-pressure water robots run at 20 and 30 bar, sense the size of the vehicle, and soften dirt with chemicals before they wash.

Metro trains and light rail

Rail wash systems are specified per project around the trainset profile, the depot road and the cycle time available per set. Europe Makine quotes them from the depot drawing and the set profile, with contact or high-pressure washing chosen against the livery and finish.

Questions and answers

Which machine takes double-deck coaches?: SUNRISE W4700. It washes to 470 cm high and 285 cm wide and is the taller of the two published SUNRISE models, built for double-deck coaches and high-cube trailers.
Can a car tunnel wash vans?: The conveyor tunnel washes vehicles up to 220 cm wide and 250 cm high. Anything larger goes to EPHESUS, which takes vans and minibuses up to 3.00 m high, or to SUNRISE.
Does Europe Makine build for mixed fleets?: Yes. One supplier covers cars, light commercials, buses, trucks and rail, so a site washing several classes can source every machine from the same builder.
What does a five-brush machine add over three brushes?: Four independently moving upright brushes and one horizontal brush do the work on CIRRUS 5N. It adds high-pressure rotary nozzles for the sides and wheels, and a chassis wash with nozzles that move left and right.

Compare the envelopes in full

Send your vehicle list

Give Europe Makine the tallest and widest vehicle you wash and how many you wash a day. The proforma quotation names the machine that fits.
